GW3UEP 100W MF CW TX Description

 472 kHz CMOS VFO    Xtal 4060     Index

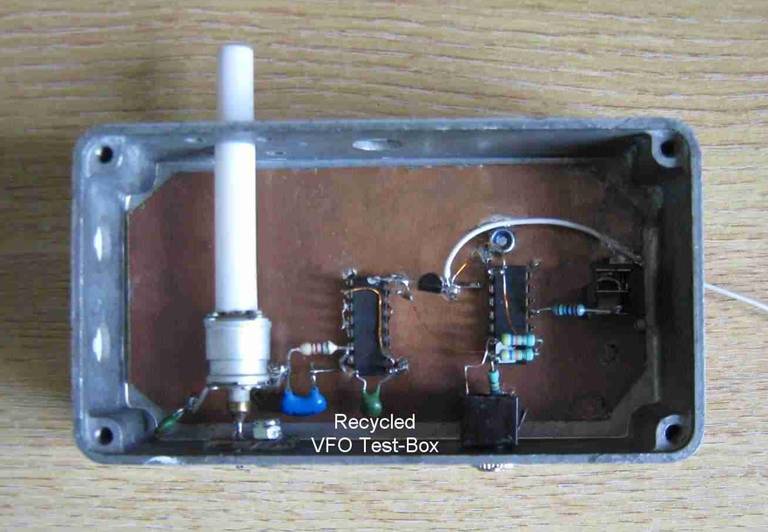

VFO Test Box    GW4HXO's B-Hive VFO

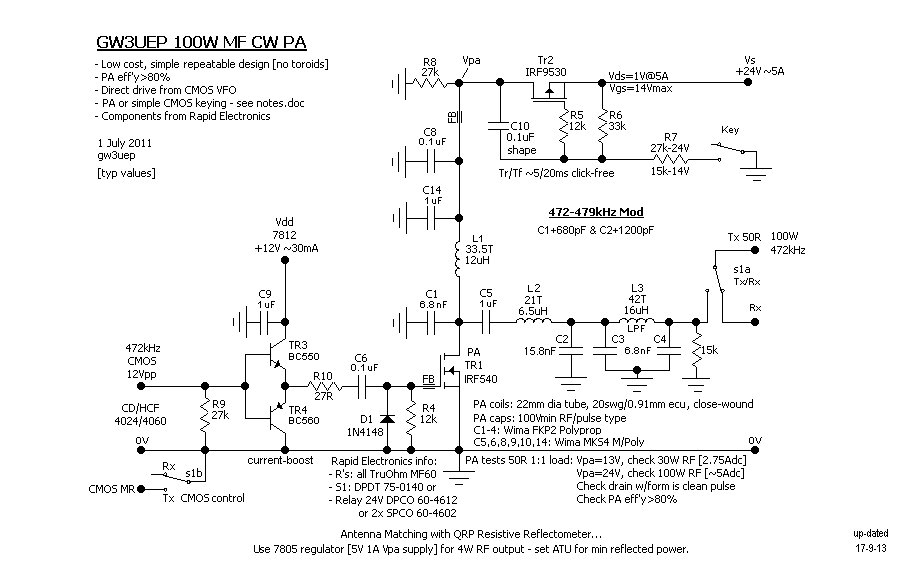

100W PA Schematic [CMOS-keyed version]

100W PA Schematic [PA-keyed version]



100W MF CW PA Test Rig

CMOS-keyed version with 12V relay

IRF540 PA scope-shots 100W o/p: matched 50R load: ~120W dc i/p

Shows PA Drain Pulse & Gate-Drive Wave-Forms

__________________________________________________________________________________

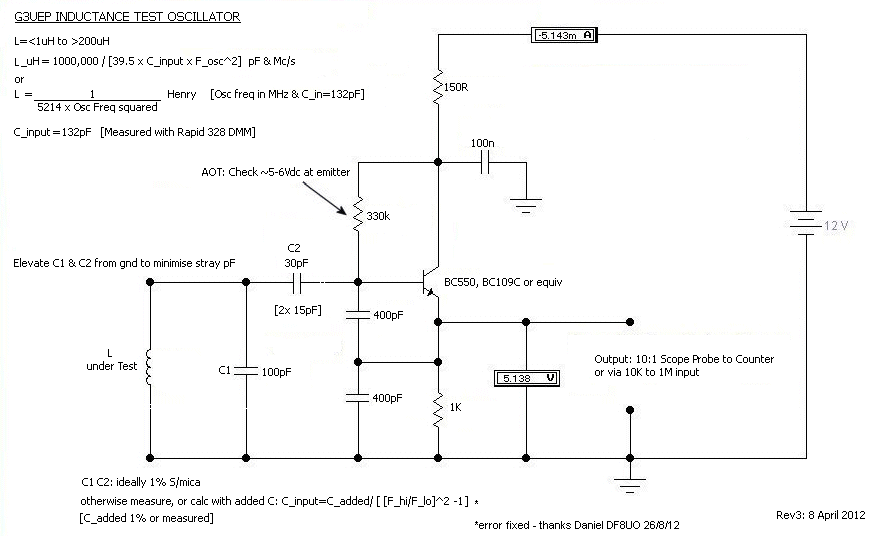

Test-Oscillator used with Frequency Counter for measurement of L1-3 Inductance values.

***
