QTX2

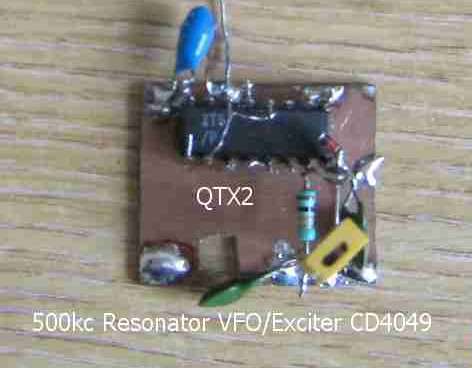

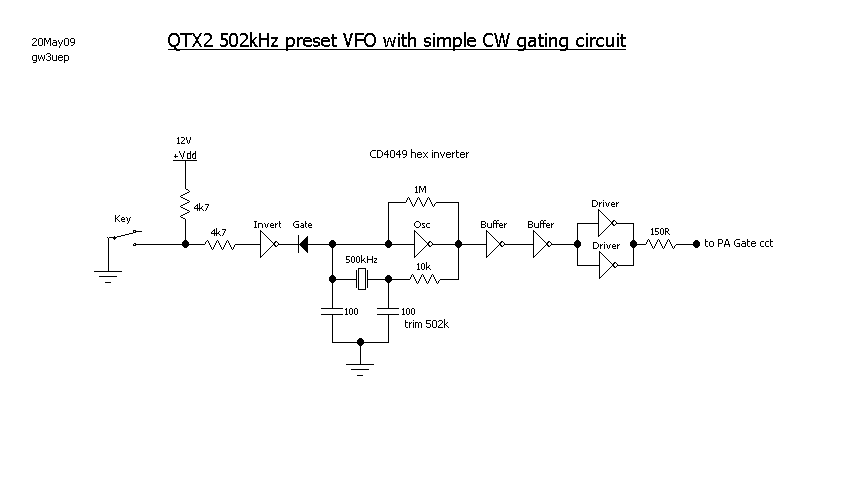

VFO-Driver

Scope Shots ...

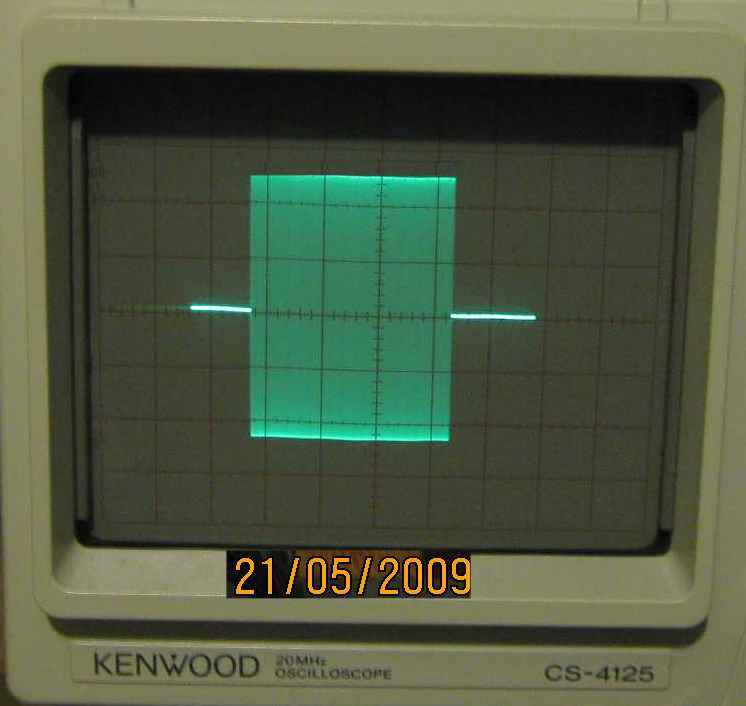

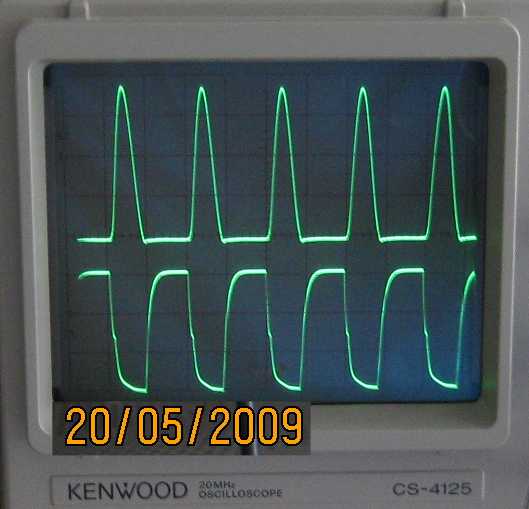

QTX2: PA Drain-Pulse & Gate-Drive Waveforms             QTX2: Gated-VFO 25W RF Envelope

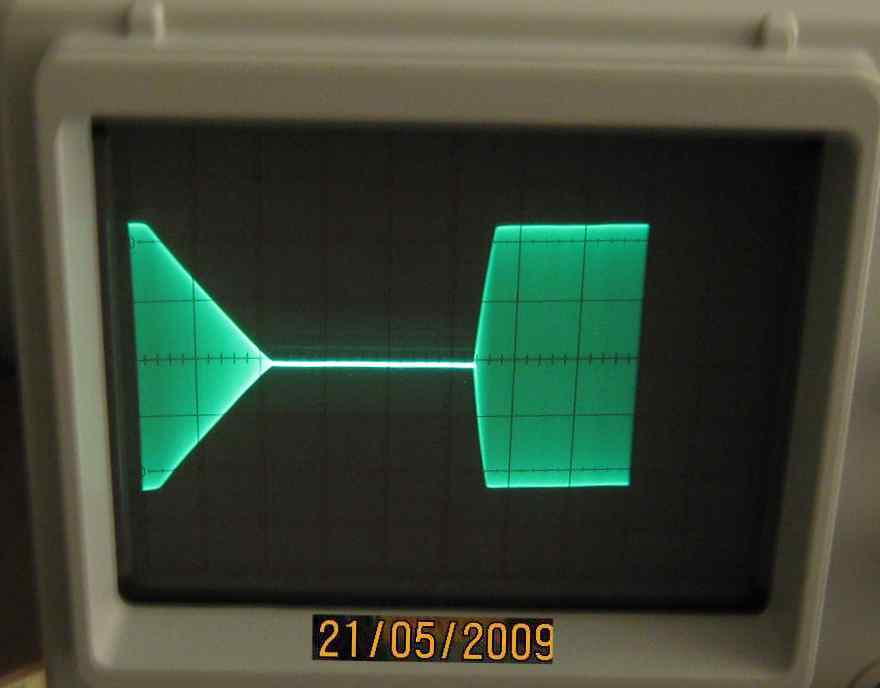

Below: With 150R in series to Gate                              QTX2: Keyed-PA 25W RF [5ms/20ms Rise/Fall]

***
