Simple Low Cost MF CW TX

VFO Info    Parts List    Xtal Schematic

---

EI0CF QTX May 2012



---

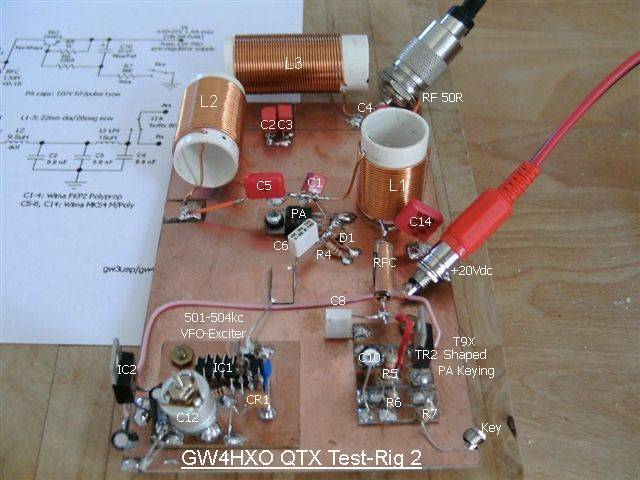

GW4HXO's QTX Test Rig

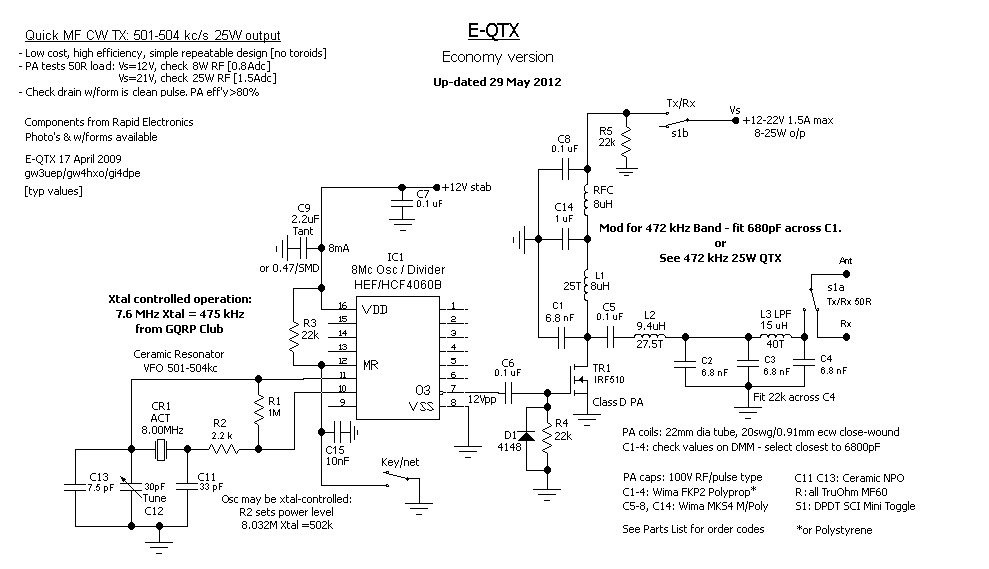

TR2 circuit not required for E-QTX

---

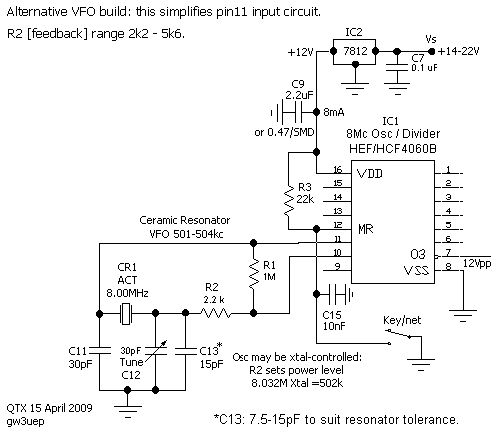

 GW4HXO's Economy VFO

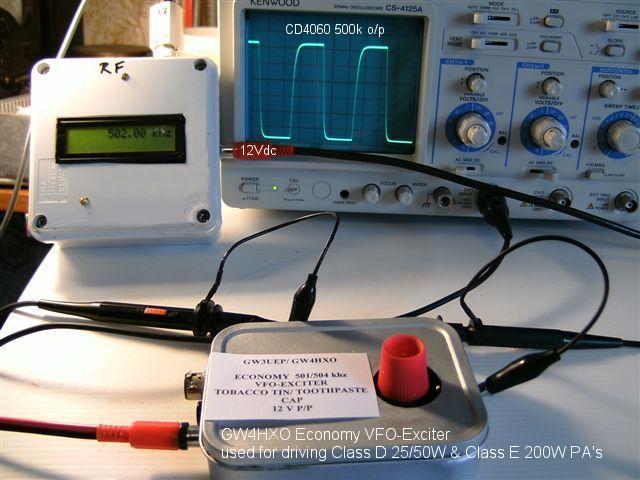

 Note: Scope shot with X1 Probe loading CMOS waveform

---

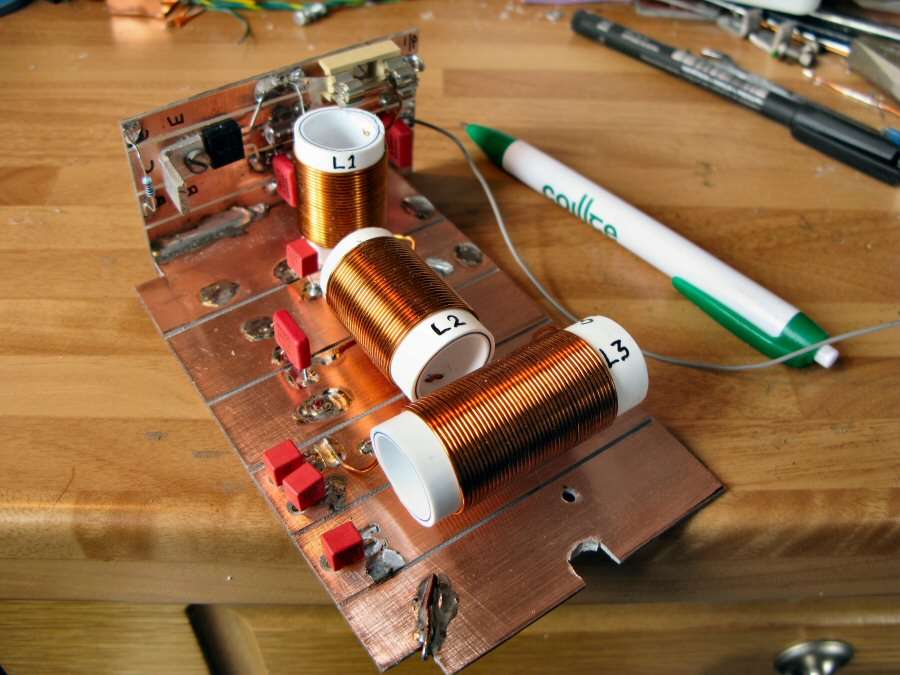

EI0CF's QTX-1 PA strip



---

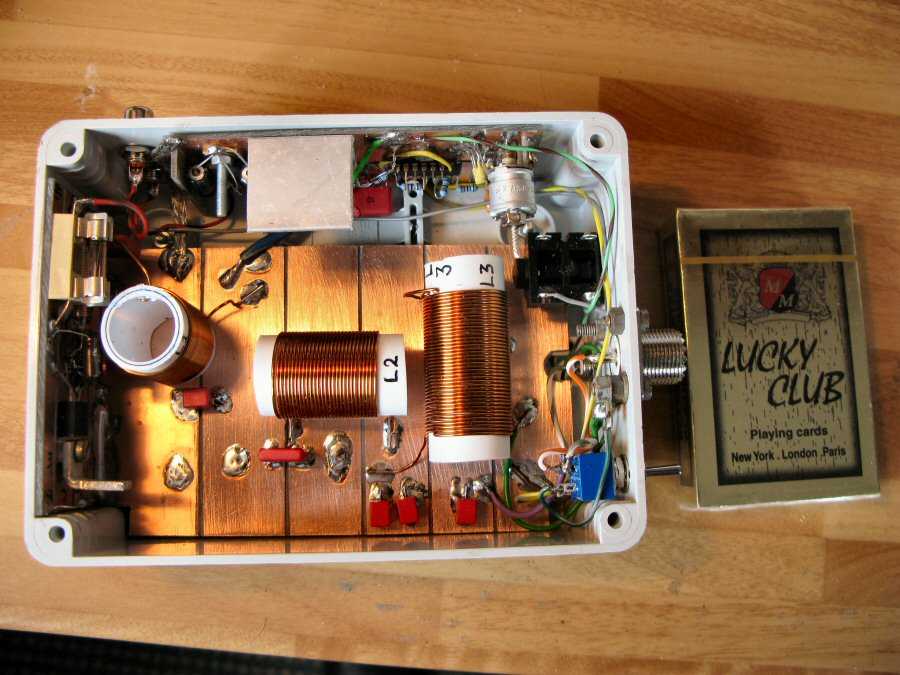

EI0CF's QTX-1 complete

***
