60m Mini TX

5MHz 5-25W CW TX with Five Preset Channels

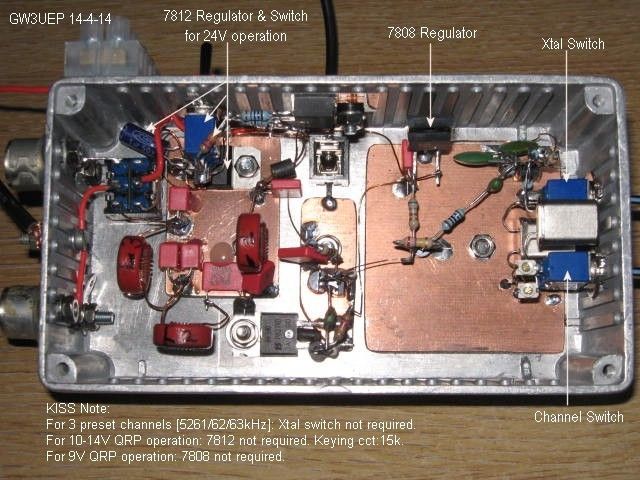

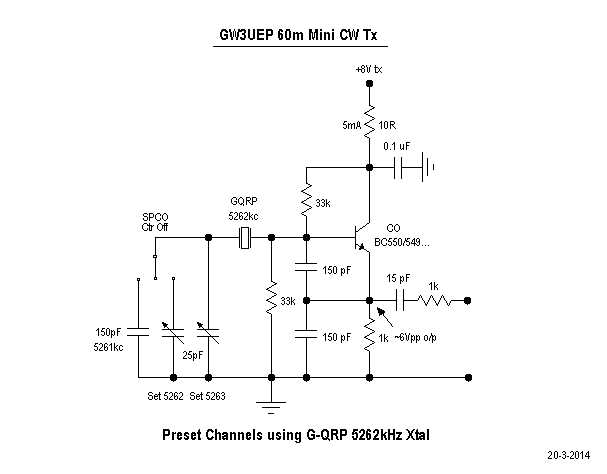

5259/60/61/62/63 using two G-QRP Club Xtals

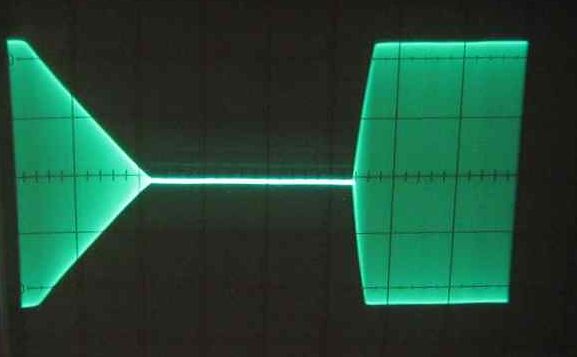

Keyed RF Envelope 25W output

Key-up spacer <1uW

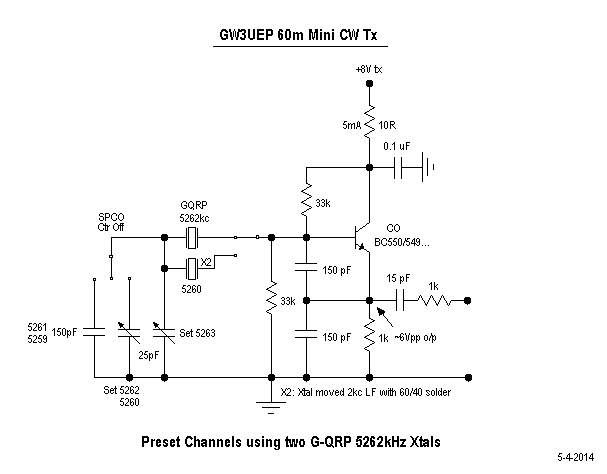

X2 note:

Xtal-can removed using edge of Swiss-file, plates then loaded with 60/40 lead-solder, 20 strokes [22swg] to each plate.

Frequency checked during the process using CO with 20pF load.

Xtal-can then soldered to base.

[typ values]


Procedure from Gerald, G3MCK.

KISS QRP Operation

Up-dated 18/4/14
